Flame Detector for Torch

Product Description

  Product Description: Torch-specific intelligent integrated flame detector (for YFD-1 torch)

  Product details:

  The torch-specific intelligent integrated flame detector (for YFD-1 torch) is an imported sensor with excellent quality, fast response time and anti-sunlight interference. At the same time, the torch integrated flame detector (YFD-1) has Small size, light weight, installation distance of 50-150m (safe), easy to adjust and so on.

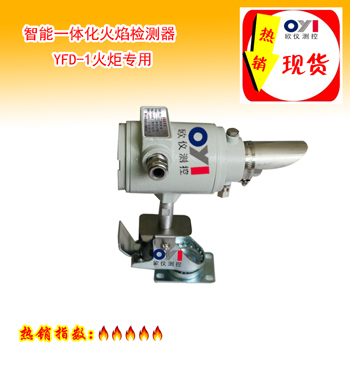

  Torch special flame detector YFD-1

  (Torch-specific intelligent integrated flame detector)

  Torch-specific intelligent integrated flame detector (for YFD-1 torch), input, dual power supply for 220VAC and 24VDC; output, flame and fault relay as standard output, and optional 4 ~20mA analog output. In this way, the YFD series torch-specific intelligent integrated flame detector can be used as an independent device, directly alarming or driving the field instrument, or directly connected to the PLC controller, DCS and EDS systems for remote control.

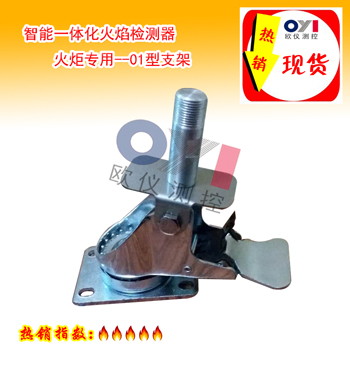

  Torch dedicated YFD-1-01 bracket

  (Torch-specific intelligent integrated flame detector)

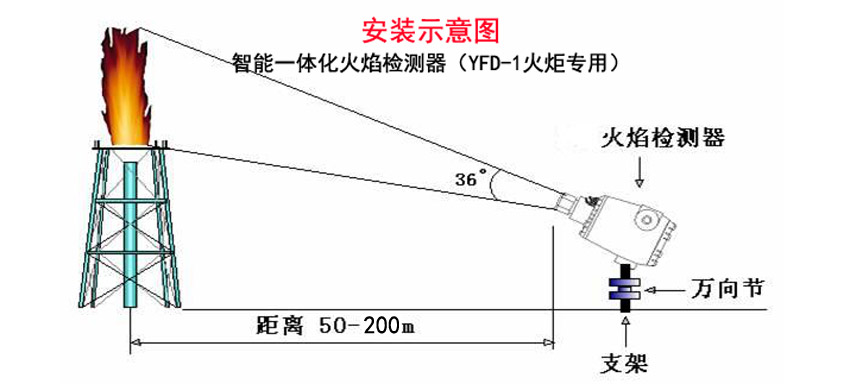

  When used, the torch-specific intelligent integrated flame detector (for YFD-1 torch) must be aligned with the middle of the flame. The sensitivity, delay, zero point and background are set on the spot. It is simple and convenient, and the service life can reach 70,000 hours.

  The warranty period is 12 months. Due to the quality problem of the torch-specific intelligent integrated flame detector, our company will return it, free maintenance outside the warranty period, only charge the cost of replacement parts, 24-hour service hotline 400-086-0915.

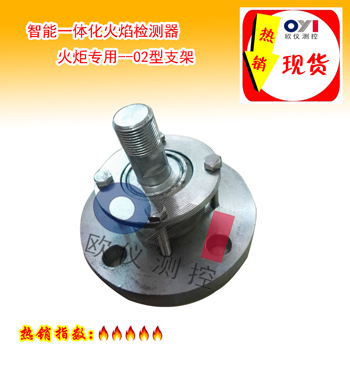

  Torch dedicated YFD-1-02 bracket

  (Torch-specific intelligent integrated flame detector)

  Torch special intelligent integrated flame detector (for YFD-1 torch), suitable for gas, blast furnace gas, blast furnace gas, coke oven gas, natural gas, etc. in petroleum, chemical, metallurgy, military and offshore oil platforms, etc. Production operations, personal safety and state property are protected from damage, and received praise from nearly 380 users.

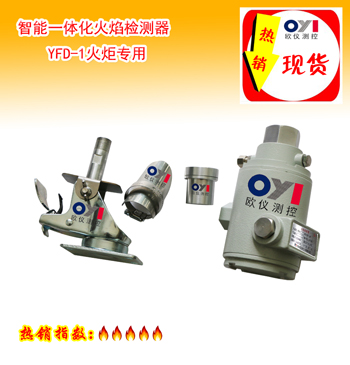

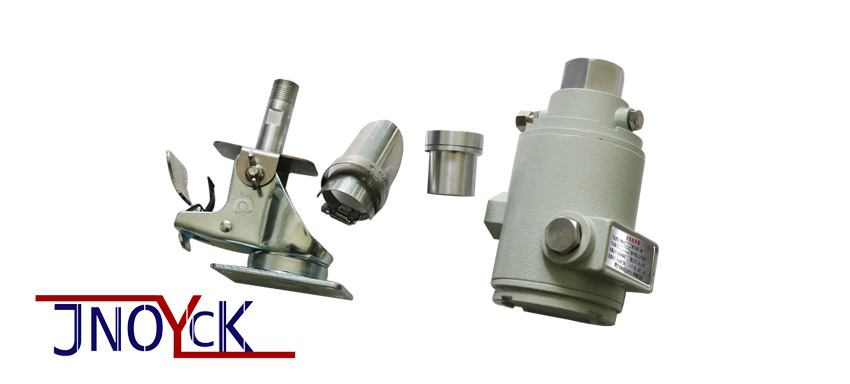

  Torch dedicated YFD-1-- exploded view

  (Torch-specific intelligent integrated flame detector)

  [Installation and use]

  Classification: 1, common type and explosion-proof type

  2, aluminum alloy shell (conventional) and stainless steel shell (high rot and other harsh environments)

  (1) Appearance and structure

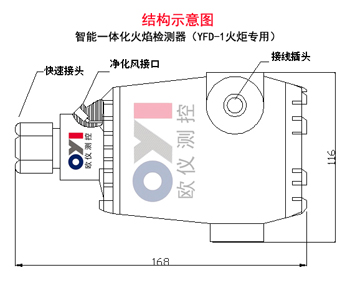

  Torch-specific YFD-1-structure diagram

  (Torch-specific intelligent integrated flame detector)
